Heat-transfer production checklist: process records

What to take away

Tie every check to a job, artwork, transfer, garment, machine, and operator.
Verify measurement capability before relying on displayed temperature or force numbers.
Keep seams and hardware outside the active contact area.
Record the press settings and the complete heat, pressure, time, peel, and wash sequence.
Approve the cold garment and required care result.
Stop, quarantine, and preserve evidence when a production control or sample fails.

Use this checklist with current transfer, ink, mask, cutter, heat-press, garment, and safety documents. Add numerical limits for the exact process. The list covers cut film most directly; adapt it under documented instructions for printable or screen-printed transfers. Use it as a record template, not a universal recipe: enter operating targets and acceptance limits from the qualified instructions for the exact transfer, garment, and press.

Know the transfer build

Heat-applied graphics run from single-color cut film to printed and screen-printed transfers. All use heat and pressure somewhere, but their carriers, color layers, adhesives and garment limits differ.

A cut film carries a color or effect layer, a heat-activated adhesive and a carrier. The cutter scores the transferable layers and leaves the carrier intact. The operator weeds, positions the carrier, presses, then peels at the named hot, warm, or cold condition.

A printable transfer adds an ink-receptive layer and often a separate application mask. A screen-printed transfer is built from one or more printed deposits on release media, usually with an adhesive layer. Sublimation paper carries disperse dye that moves into a polymer-bearing surface instead of bonding through an adhesive film.

Identify which side is cut or printed, whether the image is mirrored, which carrier or mask belongs with it, how it stores, and whether it layers. Do not pair film, mask, ink, adhesive or release media just because the dimensions fit.

Job and material identity

Job code, customer, quantity, date, use, and approver recorded.
Artwork revision, dimensions, orientation, location, and placement datum confirmed.
Transfer manufacturer, product, color, width, batch, age, and storage status recorded.
Carrier, liner, application mask, cover, or release media identified.
Garment supplier style, color, size, fiber label, finish, and lot recorded.
Current technical sheet, application instructions, safety data, and care limits available.
Unapproved substitutions separated from production material.

Artwork and cutter

Paths are closed, duplicates removed, and intended shapes joined.
Minimum line, gap, counter, dot, corner, and island fit the qualified process.
Mirroring and material side are correct for the named route.
Printable routeimage dimensions, pixel data, color mode, profile, bleed, contour path, cut offset, registration marks, and ink drying or outgassing documented.
Screen-printed routeseparations, print order, mesh, ink, adhesive deposit, release sheet, gel or cure condition, and storage documented.
Cutter, blade, holder, pinch rollers, cutting strip, and path inspected.
Material is square, supported, and held by rollers in allowed positions.
Representative test cut passes before the final graphic.
Blade, force, speed, passes, offset, and other active settings recorded.
Cut reaches the transferable layer without unacceptable carrier damage.

Weeding and transfer preparation

Weeding surface, tools, lighting, and orientation are controlled.
Every intended island, counter, punctuation mark, and fine detail is present.
Carrier has no tear, deep score, crease, contamination, or loss of hold.
Printed transfer ink, profile, drying or outgassing, contour cut, and mask meet current instructions.
Screen-printed transfer deposit, adhesive, processing, release, and storage pass their plan.
Finished transfer dimensions match the approved proof.
Transfer is labeled and protected from mix-up, dust, heat, humidity, and blocking; storage limits and usable age follow the manufacturer's current technical sheet.

Garment and placement

Correct garment identity and lot confirmed before decoration.
Supplier style, color, size range, lot, fiber label, knit or weave, surface, finish, seams, and care recorded.
Fiber, blend, finish, and care match the transfer maker's current compatibility statement.
Fabric is clean, dry, flat, and free from loose lint.
Heat-response sample covers scorch, shine, shrinkage, texture, finish, and dye movement.
Hidden-area heat test run where the garment allows it, then a full decorated sample approved before production.
Seams, collars, pockets, zippers, drawcords, hoods, and thick joins are isolated.
Appropriate platen, pad, or support is installed under the qualified method.
Garment is loaded without stretch, fold, twist, or hidden layer.
Graphic center, height, rotation, clearance, and size-specific placement pass.
Visible carrier edge is not used as the only placement reference.

Fabrics that need different care products include cotton, polyester, blends, nylon, coated fabrics, water-resistant finishes, stretch knits, fleece, and heat-sensitive synthetics. Dark polyester can push dye into a heated decoration. Stretch pulls a rigid film apart or distorts its edge. A water-repellent finish weakens adhesion. Fleece texture and lint cut contact.

Measurement readiness

Press identity, platen, controller, pad, cover sheet, and pressure method recorded.
Temperature and time devices have current verification status.
Measurement range, resolution, method, location, and acceptance limit are suitable.
Pressure indicator or closure method can distinguish the approved condition.
Contact uniformity across the graphic area has been checked.
Readings are recorded with units and device identity.

Name the instruments and methods in the job record. Examples include a surface thermocouple or an IR thermometer with emissivity and spot size accounted for when checking platen temperature, and a force gauge, load cell, or suitable pressure-indicating method for contact pressure. Record device identity, verification status, measurement location, and how the controller display or press setting is checked against an independent measurement.

The NIST Engineering Statistics Handbook defines measurement resolution as the ability to detect and faithfully indicate small changes. It also warns that displayed digits do not by themselves establish instrument resolution. This supports qualifying the measurement system against the job's tolerance instead of copying every screen digit into a record.

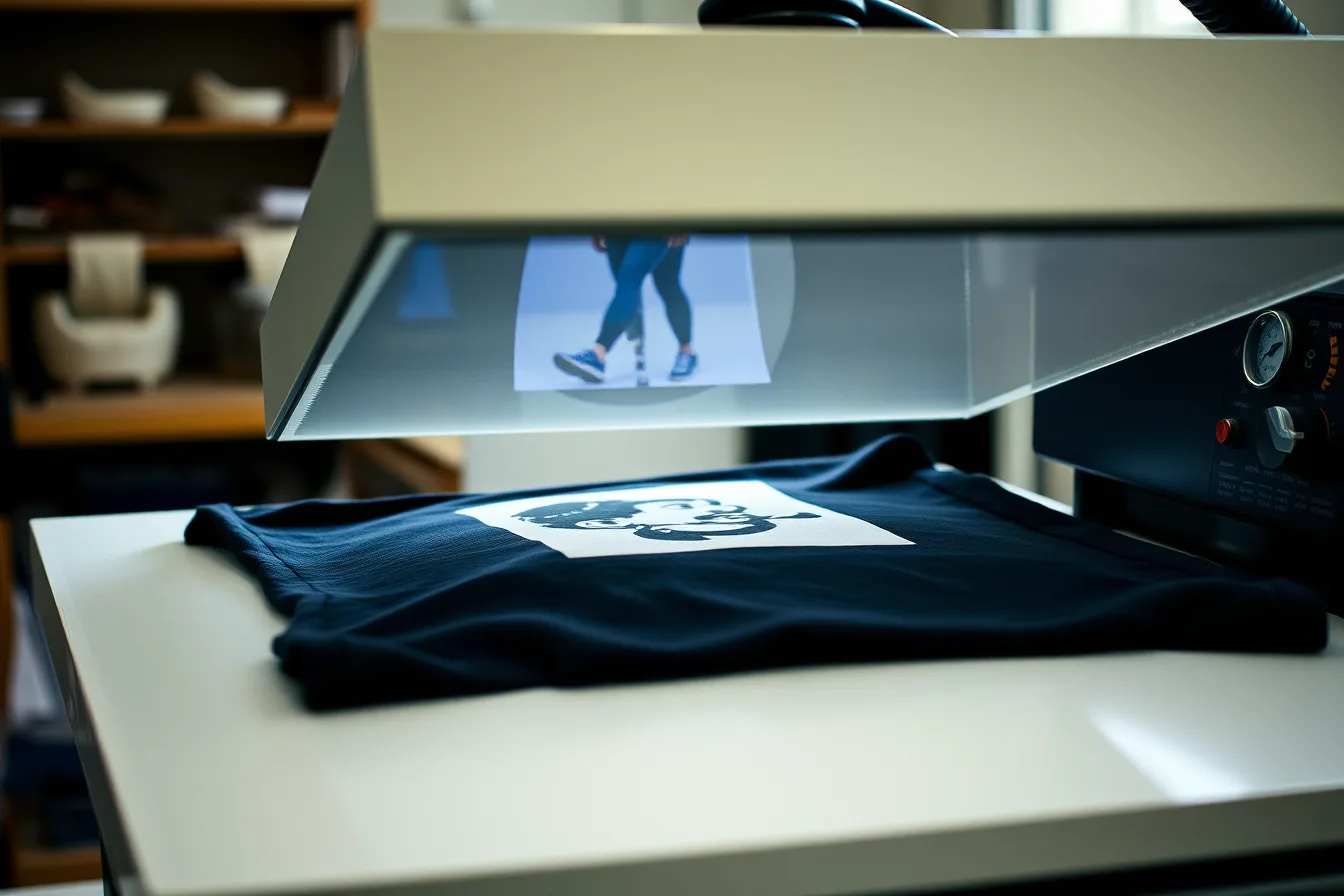

Press safety and setup

Operator is trained and authorized for the exact press.
Current startup, guarding, emergency, electrical, pneumatic, and burn controls pass.
Work area is clear and transfer placement does not require entry into a hazard zone.
Hot surfaces, moving parts, stored energy, and pinch points are controlled.
Ventilation and material handling follow current safety documents.
Press reaches a stable approved condition before the first-off.
Prepress purpose, time, and effect are recorded when used.

Review the installed machine's real motion and energy, because exposures differ among manual clamshell, swing-away unit, pneumatic press, cap press, and conveyor transfer system. Consider loading hands, closing travel, upper-platen swing, automatic opening, and compressed air.

Also consider electrical isolation, hot covers, unstable attachments, and maintenance access. Keep emergency actions usable from the operator position. Document who may clear a jam, change a platen, or enter a guarded area, and which energy-control procedure applies before that work begins.

OSHA's machine-guarding eTool has a section on press hazards and controls. It addresses power-press categories rather than apparel heat presses, so it does not prescribe this equipment's safeguards. For U.S. workplaces, assess applicable guarding under OSHA's general machine-guarding standard, 29 CFR 1910.212, and apply the hazardous-energy control standard, 29 CFR 1910.147, when its scope covers servicing or maintenance. Use the employer's procedure and the machine-specific manual to determine applicable safeguards.

Application sequence

Transfer is correctly oriented and secured by an approved method.
The qualified build identifies target temperature, dwell time, pressure or closure condition, units, acceptance limits, and any stage sequence; record the verified settings and results.
Garment and transfer remain still as the press closes.
Dwell completes without unrecorded interruption.
Press opens under the safe operating method.
Carrier is peeled at the supplier-defined hot, warm, or cold condition; record the condition and how it is recognized.
Peel direction, angle, and speed meet the process where specified.
Second press, cover, cooling, or finishing step follows the approved sequence.

Cold inspection and care test

Garment cools flat before final appearance review.
Identity, orientation, placement, dimensions, color, detail, edge, and hand pass.
No lift, gap, crack, carrier line, adhesive residue, scorch, shine, migration, ghosting, or distortion exceeds limits.
Approved flex, stretch, adhesion, or abrasion test passes.
Required hold time before laundering is observed.
Wash and dry method, edition, detergent, load, cycle, temperature, and specimen identity recorded.
Select and record a repeatable laundering method suited to the intended claim: AATCC 135 or ISO 6330 for home laundering, or AATCC 61 where an accelerated laundering method is appropriate.
Care-tested sample passes against an unwashed control.

For U.S. products covered by the FTC Care Labeling Rule, manufacturers and importers must provide regular care instructions at sale. The stated instructions should reflect the care needed for ordinary use. ASTM D5489 is a care-symbol guide; it does not replace applicable FTC requirements.

Production release and closeout

First-off sample, record, operator, and approver identified.
Inspection interval and stop limits written.
Checks repeat after stoppage, adjustment, splice, batch change, or press change.
Suspect output is quarantined back to the last passing check.
Rework follows a separately approved method and receives full inspection.
Accepted, tested, reworked, rejected, and unused quantities reconcile.
Retained garment, transfer, photos, test results, and final configuration are stored.

Common questions

Is the heat press display enough to verify temperature?

No. Define a suitable measurement method, device, range, resolution, locations, and acceptance limits for the process.

Should every garment be prepressed?

Only when the qualified method gives a purpose and condition. Added heat can mark, shrink, or change some fabrics.

Can a carrier be peeled whenever it feels cool?

No. Follow the supplier's definition: hot peel is removed while hot after pressing, warm peel after the specified cooling, and cold peel after the transfer has cooled completely. Record the chosen condition and how operators identify it consistently.

What happens after an in-process failure?

Stop, quarantine back to the last pass, preserve evidence, identify affected quantity, correct the cause, and verify a new sample before release.
