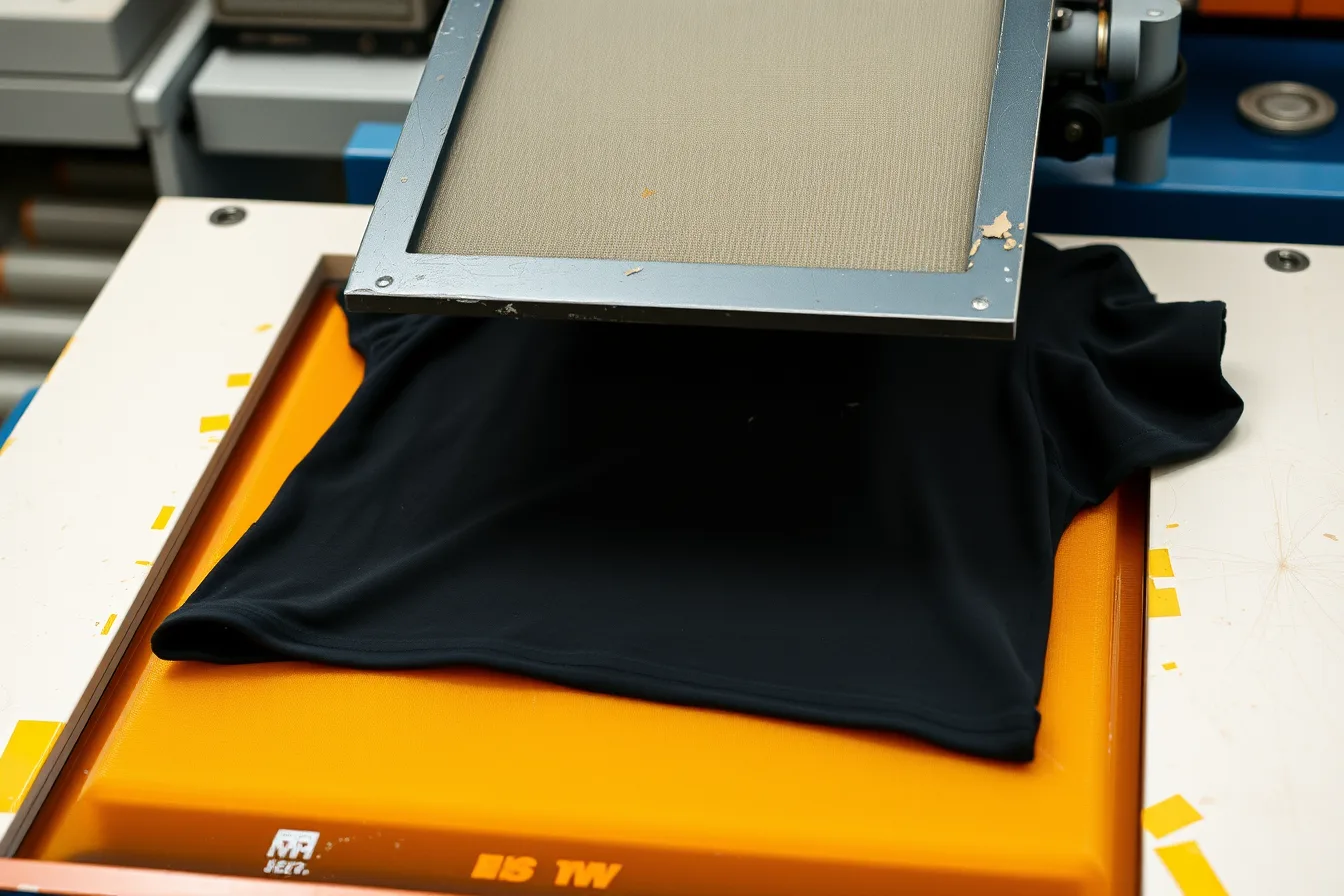

Correcting registration drift in a three-color shirt run case

What to take away

A shop runs 120 navy cotton-blend shirts with a cream underbase, orange midlayer, and pale-blue highlight. The 11-inch back graphic has tight orange-to-blue crossings near the top lettering and widely spaced marks outside the image. The approved first-off is clean.

At garment 37 the operator sees blue peeking to the right of orange near the upper lettering. A quarter turn on a micro would hide it. The shop stops the press instead.

This case is fictional. Its counts, tolerances and settings demonstrate a diagnostic method, not press values to copy.

Where this job defines registration

The traveler sets registration at six marked crossings inside the image, plus a measured edge limit on the approval overlay. The outer marks are reference only.

University of South Florida Graphicstudio's printmaking terms define registration as correct alignment of separate screens, and describe progressive proofs as single-color impressions that document what each screen contributes. That is why the shop keeps one-color and cumulative pulls through the diagnosis.

Any failure at a marked crossing stops the run and holds back to the last recorded pass.

Hold the interval before touching anything

The last logged passing check is garment 30. Garments 31 through 37 go to a labeled hold rack.

Then the shop prints a stable test sheet with nothing changed on the press, and runs a coded reject blank through the same sequence.

Read the pattern, not the worst spot

The stable sheet shows all three outer marks nearly aligned. On the shirt, the blue error is largest at the upper right and smaller near center. Cream underbase also peeks along one lower edge.

Measuring the held garments in order shows error growing gradually from shirt 32 to 37. Gradual growth argues against a sudden head movement. It also shows up on garments, not on the stable sheet.

Research summarized by Penn State notes that multicolor printing cannot hold perfect alignment, and that slight misregistration can shift color noticeably in some halftone arrangements. That printer misregistration study record concerns process-color printing, not spot-color shirts. The case borrows only its general lesson: small positional differences can read as large color changes where inks interact.

Test the platen hold

The operator loads one cold platen with fresh controlled adhesive and one warm production platen with no refresh. A removable centerline template checks the garment before and after the underbase flash.

On the warm platen the shirt shifts slightly when the underbase screen lifts. Hold weakens further after the flash. The cold platen stays inside the job limit. Inspection also finds lint buildup and uneven adhesive renewal on the production platen.

Screen clamps, micros, tension, platen fasteners and head repeatability all check out. No sudden mechanical movement. A screen adjustment here would compensate for one moving garment and misregister the stable ones that follow.

Check heat and stroke

Flash dwell is longer than the traveler value because an operator slowed the cycle after seeing underbase tack. Surface readings show a hotter garment at the next station. The hotter cycle weakens hold and stretches the loaded shirt slightly across the top.

Blue squeegee pressure also sits above the first-off setting. A harder stroke adds screen deflection and garment drag. Neither factor alone reproduces the failure. Together with weak platen hold, they do.

Correct the controlled causes

The shop cleans the platen under its procedure and reapplies the qualified holding method at the recorded amount. It restores the approved loading reference, flash cycle, cooling interval and blue stroke setting. The underbase tack question is answered through the intended flash target, not an undocumented time extension.

No micro positions move. The known good geometry stays, and the garment-control conditions come back.

Verify before restarting

The team prints five coded test garments across the working platens. Registration is checked after each color, after flash, cold after cure, and after the required wash test. All six critical crossings and the measured edge pass.

Production restarts at garment 38 with checks every third piece for 15 garments, then returns to the normal interval once stability is documented. Platen cleaning and adhesive checks enter the traveler at fixed intervals, with an extra trigger whenever loading resistance changes.

Disposition the held garments

Garments 31 and 32 pass the approval overlay and finished-product checks. Garments 33 through 37 exceed the registration limit and stay rejected. The shop does not reprint over them: a trial shows the added deposit creates a visible double edge and a harsh hand.

The final record carries the passing first-off and progressive samples. It also carries the held interval and error measurements. Equipment checks and heat and loading trials are included. The cause statement and corrections are recorded. Five restart samples and intensified inspections are included. The rejected quantity and release signature are recorded.

Common questions

Why did the outer marks look fine while the image failed?

Garment movement and screen deflection affect distant image areas differently. The outer marks sit far from the tight crossings, so they absorb small errors the crossings cannot. Check registration where the design is visually sensitive.

Why not just turn a micro?

The stable test sheet showed press geometry still close. Nudging the screen would have compensated for one unstable garment and pushed later, stable garments out of register. Fix the moving variable before the fixed one.

Was the longer flash the whole cause?

No. The evidence supports a combined condition: contaminated platen, weakened hold, excess heat, and higher stroke force. Any one alone stayed inside limits. Together they moved the shirt past the crossing tolerance.

Why were some held garments released?

Garments 31 and 32 passed the original acceptance limits and the finished-product checks. The later units documented progressive movement beyond those limits, which is what the hold rack exists to separate.
